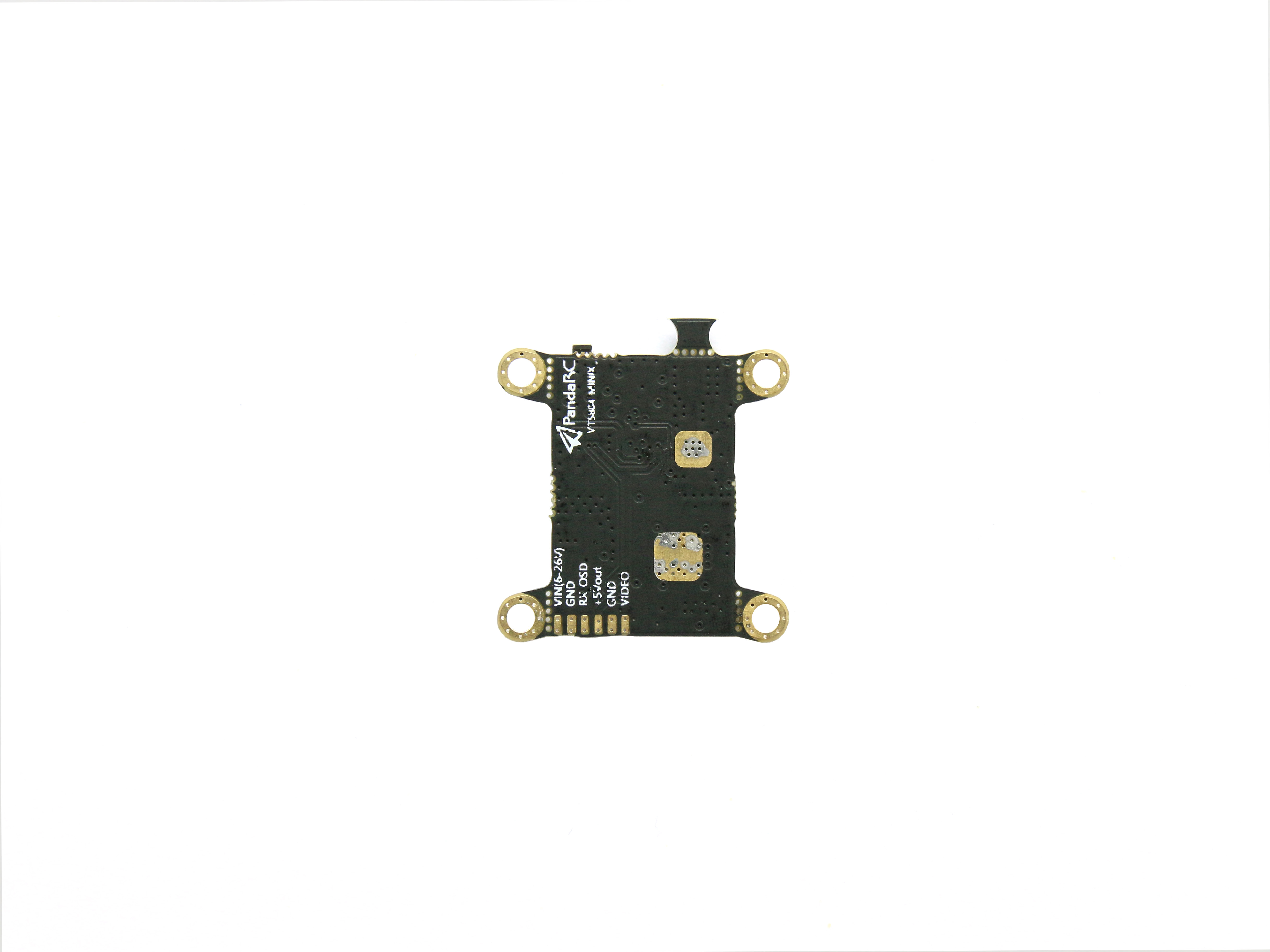

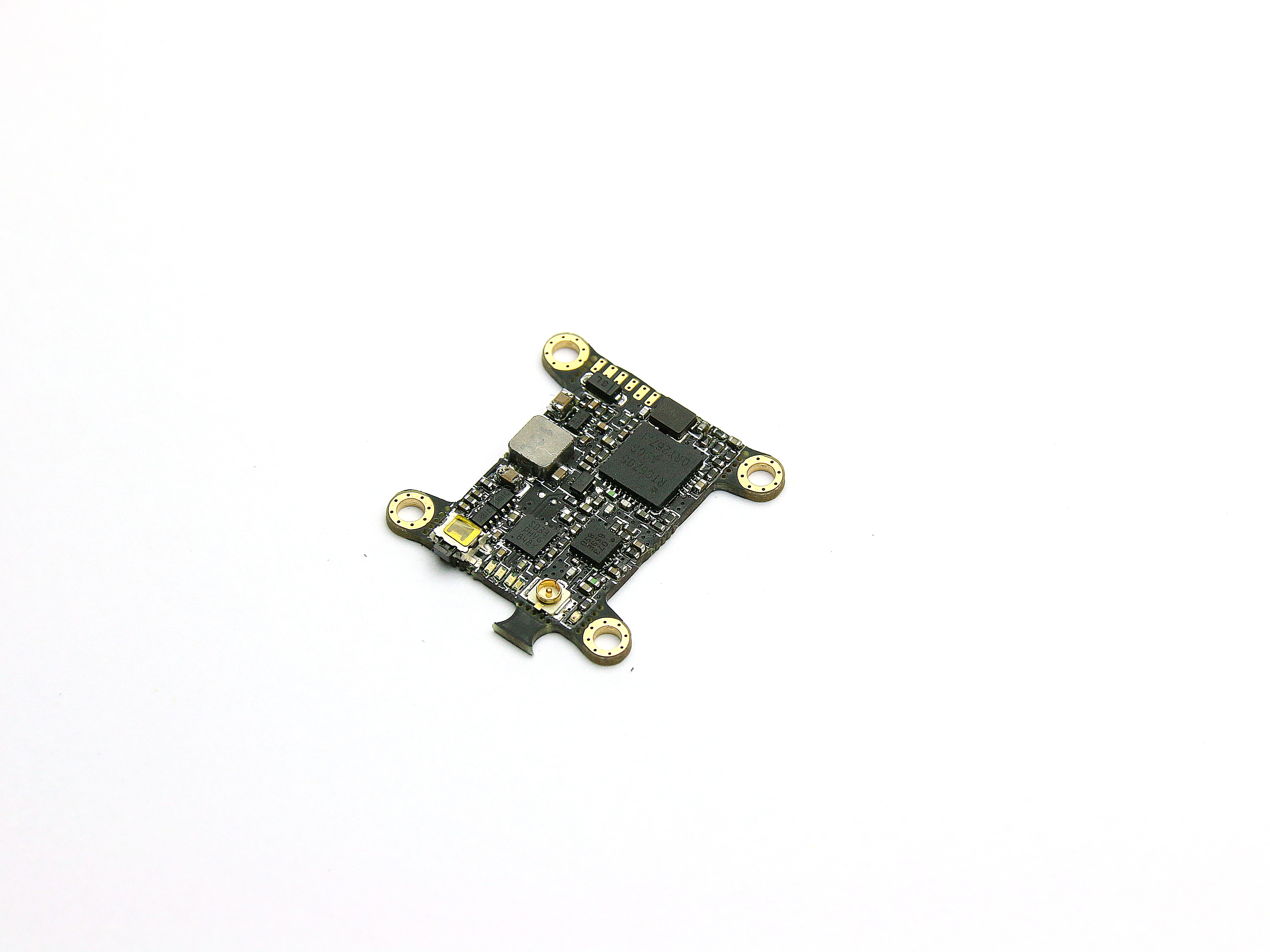

PandaRC has many options available for reliable and affordable 5.8GHz VTX, featuring different sizes, connectors, and output power levels. This lightweight version features an U.FL connector and 20x20 mounting holes.
Check out the full range of PandaRC VTXs and all our Video Transmitters
Features
The output power is stable and the transmission distance is long: > 0.5km@25mW, > 1km@200mW, > 1.5km@400mW (original antenna)
6-stop transmission power switching: 0 mW/25 mW/50 mW/100 mW/200 mW/400 mW
Support OSD interface to adjust transmission frequency and power
Output 16 frequency points, including group A and group R
Fast frequency locking and no disturbance to peers when switching on.
Self-checking function of output power
Full video format: NTSC/PAL
The input voltage range is wide and the power consumption is low: 6V-26V, 12V/240mA@400mW
Small size: 24mm * 24mm * 3mm, installation hole 20mm * 20MM (4-M2)
Light weight: <3g (without antenna)
Specifications
Input Voltage : 6-26V
Connector: U.FL
Size: 24x24x3mm
Mounting Dimensions: 20x20
Weight: 3g
Includes
1x PandaRC VT5804 Mini X 20x20 5.8GHz 25-400mW VTX - U.FL
